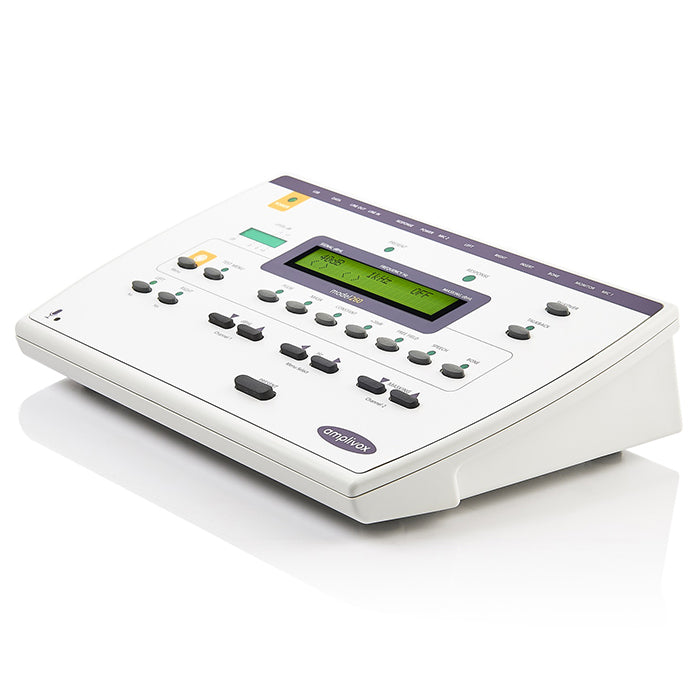

Amplivox 260 Portable Diagnostic Audiometer

The Amplivox 260 audiometer is a high quality, portable diagnostic audiometer with a range of innovative features. The Amplivox 260 is designed to be lightweight, portable and specifically used by an operator.

The Amplivox 260 offers a great vatiety of functions including air conduction, bone conduction and speech audiometry. In addition the 260 audiometer offers narrowband and speech weighted masking, and a number of specialist tests all as standard features.

The Amplivox 260 diagnostic audiometer is ergonomically designed with control functions laid out in an easy to read manner and the integrated digital display making readings easy to view. Test results can be displayed and recorded at the end of the test and saved if required using the memory function. Results can also be printed using the optional Amplivox printer, recorded manually using audiogram cards or transferred to a PC installed with Amplivox audibase software.

With talk forward/back functionality, the Amplivox 260 can be used within a static environment with acoustic booths or as a totally portable diagnostic audiometer for peripatetic use.

The Amplivox 260 audiometer is supplied with the following equipment:

• Audiometric headset
• Bone conduction headset

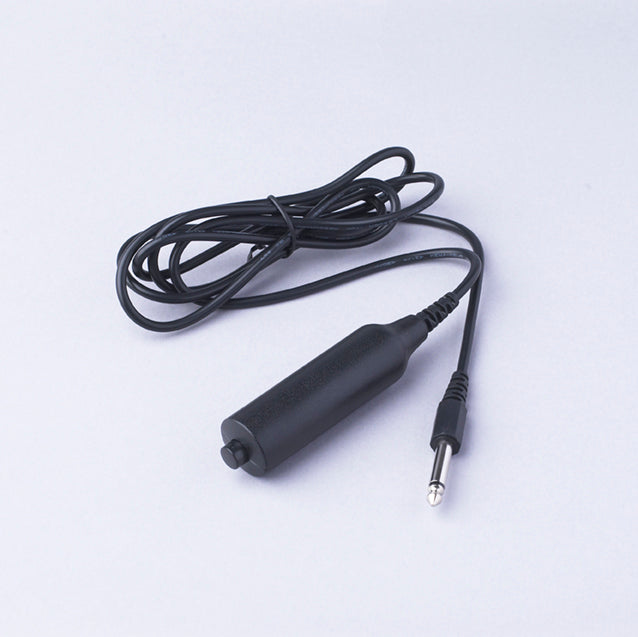

• Patient response switch

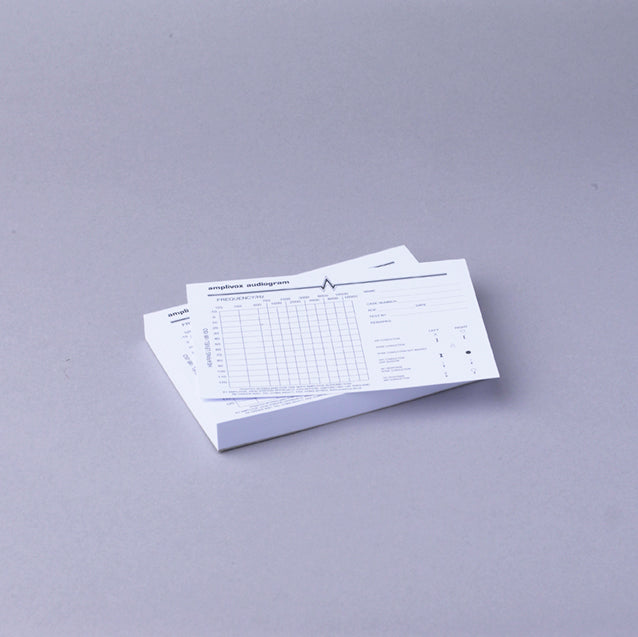

• Audiogram cards (50)
• Operation manual
• Mains adaptor
• Integrated talk over function

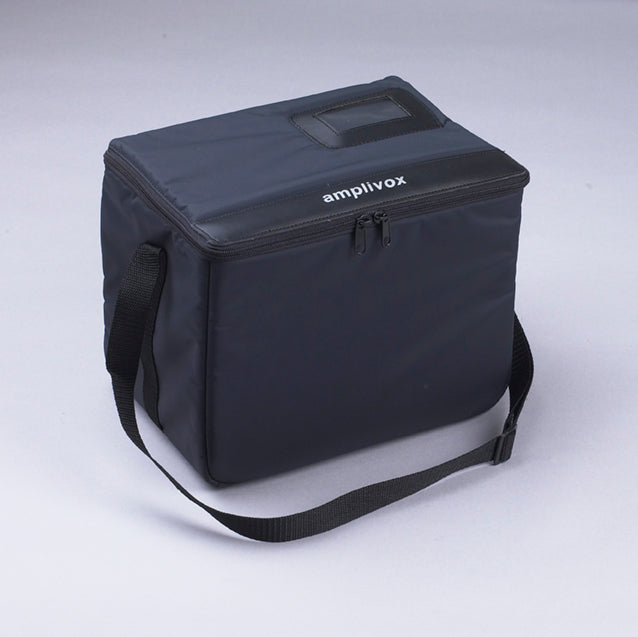

• Custom-designed carrying case
• Standard 2-year warranty

Technical specifications

Output/input data

• Outputs: Left AC, Right AC, Bone(L&R), insert masking and freefield
• Frequency range (Hz): AC: 125-8kHz BC: 250Hz-8kHz
• Frequency accuracy: <1%
• Distortion: <2%
• Output level range (AC): -10dBHL to 120dBHL (max)
• Output level range (BC): -10dBHL to 70dBHL (max)
• Output level range (FF): Up to 90dB
• Insert masking output: 90dBHL max (250-4kHz)
• Output level accuracy: Within 3dB
• Output level step size: 2.5dB or 5dB
• Output transducer options: Standard audiometric
  headset (AC) and/or optional insert earphones
• Tone present: Single, pulsed, warble or continuous
• Masking: Narrowband and broadband
• Stenger: Pure tone Stenger test
• ABLB: Loudness balance test (Fowler)
• Communication: Talk over and talk back functionality
• Recorded speech: Tape or CD input
• Live speech: 2 x microphone input
• Level indicator: Monitors live and recorded
  speech
• NOAH interface: Transfer of AC and BC
  test results

Physical data

• Display: 2 lines of 24 characters (backlit)
• Power (mains): 100-240V ac 50-60Hz
• Dimensions (mm): 270(l) x 175(d) x 68(h)
• Weight: 830 grams

Standards

The Amplivox 260 conforms to the relevant clauses of the following standards.

• Safety: IEC 60601-1
• EMC: IEC 60601-1-2
• Audiometric: IEC 60645-1
• CE mark: Complies to EU Medical Device Directive

The following optional extended warranty plans are available with this product:

• 3-Year Extended Warranty & On-Site Calibration (UK Mainland Only)
• 5-Year Extended Warranty & On-Site Calibration (UK Mainland Only)
• 3-Year Extended Warranty & Return To Base (RTB) Calibration
• 5-Year Extended Warranty & Return To Base (RTB) Calibration

This Item will be delivered directly from the manufacturer. Please allow 7 working days for delivery.
